2022 - 22GN-8 1/2 x 30 + Black,Dovetail with 5 Fold-u
VIN: 027895
Call for Quote
(772) 205-8904Multiple Locations
Ready for the ultimate gooseneck trailer? A premium trailer providing long-lasting durability, the 22GN Tandem Dual Flatbed Gooseneck Trailer is built to work the toughest jobs in the most rugged conditions. From its dual 2-Speed 50K landing gear to HD adjustable suspension, its designed to handle heavy-duty hauling needs, particularly for transporting heavy construction equipment and hotshotting.
- Overview
- Features/Specifications
- Standard/Optional Equipment
- Financing
Overview
2022 - 22GN-8 1/2 x 30 + Black,Dovetail with 5 Fold-u

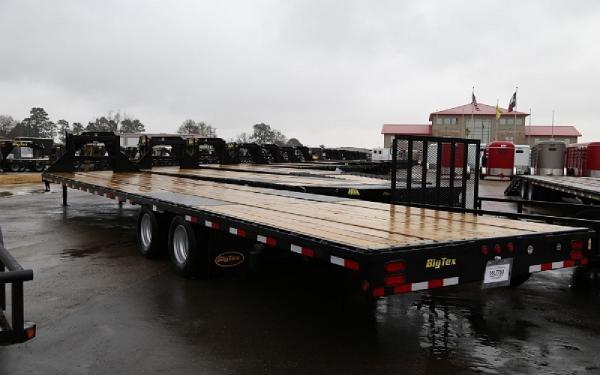

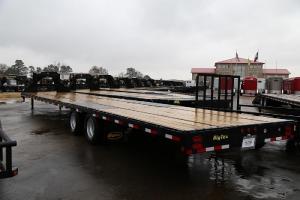

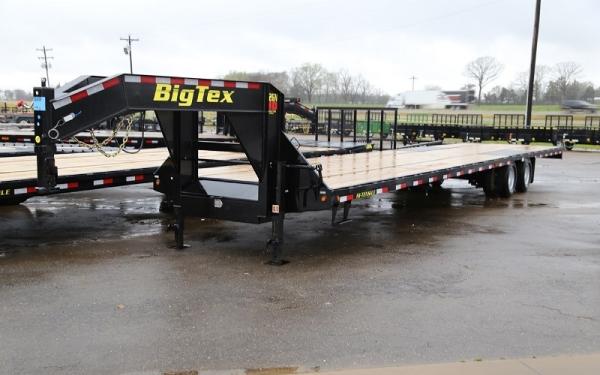

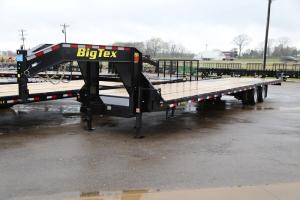

Big Tex 22GN Tandem Dual Gooseneck
Our 22GN model comes standard with host of features including our Low Profile design and HD Adjustable Suspension.
Low Profile Design:
•Pierced Integrated Frame:Adds Strength and Longevity
•Low Center of Gravity: Provides Improved Handling During Tow
•Shallower Load Angle: Safer and Easier to Load
•Lower Deck Height: Allows Taller Stacking of Loads
Heavy Duty Adjustable Suspension:
•Heavy duty mechanical design reduces road shock to cargo
•Improves integrity, reliability, and durability
•Extended life for equalizer bushings, less wear, and lower maintenance
•Adjustable to ensure proper tire tracking
Structural Details:
•12'' I-Beam Frame & Neck
•3'' Channel Crossmembers-Plasma Pierced Through Frame
•Torque Tube Standard on 28' (Flat Deck) & Longer
•2 Side Bed Steps & Handles
•1-1/4'' Pipe Chain Spool Between Stake Pockets
•3/8'' Heavy Duty Rub Rail w/ Stake Pockets on 24'' Centers
•3-Year Structural Warranty
•5' Self Cleaning Dovetail w/ Variety of Ramp Options
•Dual Fold Over Ramps-Standard Equipped
Where the Rubber Meets the Road:
•Premium Dexter Oil Bath 10,000# Axles
•ST 235/80 R-16 Load Range E Dual Radial Tires
•Forward Self Adjusting Brakes
•Complete Break-A-Way System w/Battery & Charger
•Mudflaps
•Spare Tire and Wheel
More Standard Features:
•Lockable Toolbox Between GN Uprights
•30k Square Crank-Style Adjustable Coupler
•Dual 12k Drop-Leg Jacks w/ Greasable Handle (Bolted on for easy replacement)
•Sealed Modular Wiring Harness
•All Grommet Mount Sealed LED Lighting and Reflective Conspicuity Tape
•Spare Tire Mount
•2'' Treated Pine Or Douglas Fir Floor (#2 or Better)
•3/8'' Grd.70 Safety Chains w/Safety Latch Hook (2 each)
•Bead Blasted & Acid Etched Prep
•Automotive Grade Highly Decorative and Protective Finish
Optional Add-Ons (Additional Cost)
•Electric Over Hydraulic Brakes
•Deck on Neck (Removable)
•Sliding Winch Track and Winches
•Underbody Tool Box(s)
•Additional Rear Ramps Available
•Third Fold Over Ramp Option
•Mega Ramps
•Center Pop-Up
•Straight-Deck
•Hydraulic Dovetail
Lengths Available (Others by special order):
•20’+5’
•25’+5’
•28’+5’
•30’+5’
•32’+5’
•35’+5’
•36’ (Straight Deck)
•40’ (Straight Deck)
Additional options may be available, contact store for details.
Photo used for illustrative purposes and may not be an exact representation of actual trailer on lot.
All trailers shipped after 04/02/18 are subject to a 3% steel surcharge. Please give us a call for more information.
- Axle Config:
- Tandem
- Max Payload:
- 16700 lbs.
- External Width:
- 102"
- External Length:
- 30+5
- Weight:
- 7200
- Hitch Type:
- Gooseneck
- Category:
- Gooseneck/Pintle Trailers
- Year:
- 2022
- Condition:
- New
- Material:
- Steel
- Open/Enclosed:
- Open
- Rear Type:
- 5' Fold Up Ramps
- Warranty:
- Factory Warranty Included
- Color:
- Black
- GVWR:
- 23900
- Capacity:
- 16700
Features/Specifications
Features
| Axle | (2) 10,000# Dual Wheel w/ Electric Brakes (Oil Bath) |
|---|---|
| Jack | Dual 12,000# Drop Leg Jacks (Bolted On) |
| Neck | 12" I-Beam, 16# |
| Tire | ST235/80 R-16 Load Range E Dual |
| Floor | 2" Treated Pine or Douglas Fir* |
| Frame | 12" I-Beam, 16# (19# on 28 Trailer & Longer) |
| Wheel | 16" x 6"; Black Dual Wheel 8 Bolt |
| Finish | Superior Quality Finish is Applied for a Highly Decorative and Protective Finish. |
| Lights | L.E.D. D.O.T. Stop, Tail, Turn & Clearance |
| Coupler | 2-5/16" Demco EZ Latch |
| Dovetail | 5 Cleated Dovetail w/5 Double Hinged, Spring-Assisted Flip-Over Ramps |
|---|---|
| G.V.W.R. | 23,900# |
| Elec. Plug | 7-Way RV |
| Hitch Type | Gooseneck |
| Side Rails | 6" Channel w/Rub Rail, Stake Pockets, and Chain Spools |
| Suspension | Heavy Duty 30,000# Adjustable |
| Crossmembers | 3" Channel |
| Finish (Prep) | Steel is Cleaned to Ensure a Professional Smooth Finish. |
| Safety Chains | 3/8" Grd. 70 w/Safety Latch Hook (2 each) |
| G.A.W.R. (Ea. Axle) | 10,000# |
Specifications
Big Tex 22GN Tandem Dual Wheel Gooseneck Trailer
| Model | Description |
|---|---|
| 22GN-20+5 | 102" x 20' + 5' Tandem Dual Wheel Gooseneck |
| 22GN-25+5 | 102" x 25' + 5' Tandem Dual Wheel Gooseneck |
| 22GN-28+5 | 102" x 28' + 5' Tandem Dual Wheel Gooseneck |
| 22GN-30+5 | 102" x 30' + 5' Tandem Dual Wheel Gooseneck |
| 22GN-35+5 | 102" x 35' + 5' Tandem Dual Wheel Gooseneck |
| 22GN-36 | 102" x 36' Tandem Dual Wheel Gooseneck (Straight) |
| 22GN-40 | 102" x 40' Tandem Dual Wheel Gooseneck (Straight) |
Dimensions
| Length | A | B | C |
|---|---|---|---|
| 20'+5' | 240' | 186" | 54' |
| 25'+5' | 300" | 240" | 60" |
| 28'+5' | 336" | 264" | 72" |
| 30'+5' | 360" | 280" | 80" |
| 35'+5' | 420" | 320" | 100" |
| 36' | 432" | 288" | 144" |
| 40' | 480" | 320" | 160" |
Trailer Weights & Capacities
| Length | Empty Weight | Payload | Box Capacity |
|---|---|---|---|
| 20'+5' | 5,800# | 18,100# | N/A |
| 25'+5' | 6,300# | 17,600# | N/A |
| 28'+5' | 6,900# | 17,000# | N/A |
| 30'+5' | 7,200# | 16,700# | N/A |
| 35'+5' | 7,950# | 15,950# | N/A |
| 36' | 7,200# | 16,700# | N/A |
| 40' | 7,800# | 16,100# | N/A |
Standard/Optional Equipment
Standard Equipment
- 2-5/16" Demco EZ Latch Gooseneck
- Dual 12,000# Drop Leg Jacks (Bolted on) w/Greasable Handle
- 102" Overall Width
- Low Profile Bed, Pierced- Beam Frame Design
- Lockable Toolbox Between GN Uprights
- (2) Side Bed Steps & Handles
- 3/8" Heavy Duty Rub Rail
- Stake Pockets Along Sides, 24" On Center
- 1-1/4" Pipe Chain Spools Between Tie Down Pockets
- Premium Brand Axles
- Oil Bath Hubs
- Forward Self Adjusting Brakes
- Heavy Duty 30,000# Adjustable Suspension
- Torque Tube Standard on 28 (Flat Deck) & Longer
- Grommet Mount Sealed Lighting
- L.E.D. Lighting Package
- Sealed, Modular Wiring Harness
- Spare Tire Mount (Top of Neck)
- 5 Dovetail w/ 5 Double Hinged Spring Assist Flip-Over Ramps
- Complete Break-A-Way System w/Charger
- Zip Breakaway Cable
- Radial Tires
- Mudflaps
- Spare Tire & Wheel-Standard Equipped
Optional Equipment
| Category | Description |
|---|---|
| BODY | Blackwood Pro Rubber Infused Floor |
| BODY | Removable Deck on the Neck- Bolt On (8 W x 6 L) |
| BRAKES | Electric Over Hydraulic Brakes (Disc) |
| BRAKES | Electric Over Hydraulic Brakes (Drum) |
| CARGO CONTROL | 4" Sliding Winch |
| CARGO CONTROL | 4" Weld-On Winch |
| CARGO CONTROL | 4" x 30 Strap |
| CARGO CONTROL | 5/8" D-Ring |
| CARGO CONTROL | Low Profile Tool Box 12" x 18" x 36" (Side Mount) |
| CARGO CONTROL | Sliding Winch Track (Per 6 Section) |
| JACK | Dual 2-Speed Landing Gear |
| JACKS | Dual Electric Over Hydraulic Jacks by Stillwell |
| RAMPS | (2) 5 MEGA Ramps |
| RAMPS | 8 Rear Slide-In Ramps (Straight Deck Only) |
| RAMPS | No Dovetail Option (Deletes Dovetail and Ramps) |
| TIRE/WHEEL | Tire Upgrade (ST215/75 R-17.5 LR-H Dual) |
| TIRE/WHEEL | Tire Upgrade (ST235/85 R-16 LR-G Dual) Includes Spare |
