2022-14GN-8 1/2 x 25 +5 Black,Dovetail with 5 Fold-up
VIN: 000784
Call for Quote
(772) 205-8904Multiple Locations

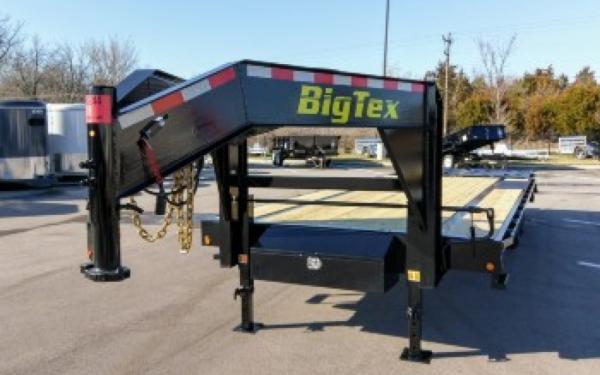

For those who pour blood, sweat, and tears into their work every day of the week, the low-profile 14GN Single Wheel Tandem Axle Gooseneck Trailer is here to make your job a little easier. A medium-duty, single-wheel gooseneck trailer thats built for strength and durability, the 14GN delivers reliable performance for a wide range of needs for contractors, farmers, and equipment haulers. From its LED lights, treated floor, dual jacks, and adjustable coupler, this is a professional-grade trailer thats outfitted with the features that hardworking individuals demand to get the job done.
- Overview
- Features/Specifications
- Standard/Optional Equipment
- Financing
Overview
2022-14GN-8 1/2 x 25 +5 Black,Dovetail with 5 Fold-up
- Axle Config:
- Tandem
- Max Payload:
- 10620 lbs.
- External Width:
- 102"
- External Length:
- 25+5
- Weight:
- 5280
- Hitch Type:
- Gooseneck
- Category:
- Gooseneck/Pintle Trailers
- Year:
- 2022
- Condition:
- New
- Material:
- Steel
- Open/Enclosed:
- Open
- Warranty:
- Factory Warranty Included
- Color:
- Black
- GVWR:
- 15900
- Capacity:
- 10620
Features/Specifications
Features
| Axle | (2) 7,000# Quick Lubricating w/Electric Brakes |
|---|---|
| Jack | Dual 12,000# Drop Leg Side Wind (Bolted On) |
| Neck | 12" I-Beam, 14# |
| Tire | ST235/80 R-16 Load Range E |
| Floor | 2" Treated Pine or Douglas Fir* |
| Frame | 12" I-Beam, 14# |
| Wheel | 16" x 6"; Black Mod 8 Bolt |
| Finish | Superior Quality Finish is Applied for a Highly Decorative and Protective Finish. |
| Lights | L.E.D. D.O.T. Stop, Tail, Turn & Clearance |
| Coupler | 2-5/16" Ball Adjustable Pipe |
| Dovetail | 5 Cleated Dovetail w/5 Double Hinged, Spring-Assisted Flip-Over Ramps |
|---|---|
| G.V.W.R. | 15,900# |
| Elec. Plug | 7-Way RV |
| Hitch Type | Gooseneck |
| Side Rails | 5" Channel w/Rub Rail, Stake Pockets, and Chain Spools |
| Suspension | Multi-Leaf Slipper Spring w/Equalizer |
| Crossmembers | 3" Channel |
| Finish (Prep) | Steel is Cleaned to Ensure a Professional Smooth Finish. |
| Safety Chains | 3/8" Grd. 70 w/Safety Latch Hook (2 each) |
| G.A.W.R. (Ea. Axle) | 7,000# |
Specifications
Big Tex 14GN Single Wheel Tandem Axle Gooseneck Trailer
| Model | Description |
|---|---|
| 14GN-20+5 | 102" x 20' + 5' Single Wheel Tandem Axle Gooseneck |
| 14GN-22+5 | 102" x 22' + 5' Single Wheel Tandem Axle Gooseneck |
| 14GN-25+5 | 102" x 25' + 5' Single Wheel Tandem Axle Gooseneck |
| 14GN-28+5 | 102" x 28' + 5' Single Wheel Tandem Axle Gooseneck |
| 14GN-30+5 |
Dimensions
| Length | A | B | C |
|---|---|---|---|
| 20'+5' | 240" | 186" | 54" |
| 22'+5' | 264" | 210" | 54" |
| 25'+5' | 300" | 240" | 60" |
| 28'+5' | 336" | 264" | 72" |
Trailer Weights & Capacities
| Length | Empty Weight | Payload | Box Capacity |
|---|---|---|---|
| 20'+5' | 4,780# | 11,120# | N/A |
| 22'+5' | 4,980# | 10,920# | N/A |
| 25'+5' | 5,280# | 10,620# | N/A |
| 28'+5' | 5,580# | 10,320# | N/A |
| 0# | 15,900# | N/A |
Standard/Optional Equipment
Standard Equipment
- 2-5/16" Ball Adjustable Pipe Coupler
- Dual 12,000# Drop Leg Jacks (Bolted on) w/Greasable Handle
- 102" Overall Width
- Low Profile Bed, Pierced- Beam Frame
- Lockable Toolbox Between GN Uprights
- (2) Side Bed Steps & Handles
- 3/8" Heavy Duty Rub Rail
- Stake Pockets Along Sides, 24" On Center
- 1-1/4" Pipe Chain Spools Between Stake Pockets
- Quick Lubricating Hubs
- Premium Brand Axles
- Forward Self Adjusting Electric Brakes on All Hubs
- Cambered Axles
- Grommet Mount Sealed Lighting
- L.E.D. Lighting Package
- Sealed, Modular Wiring Harness
- 5 Dovetail w/ 5 Double Hinged Spring Assist Flip-Over Ramps
- Complete Break-A-Way System w/Charger
- Spare Tire Mount (Top of Neck)
- Radial Tires
- Zip Breakaway Cable
- Spare Tire & Wheel - Standard Equiped
Optional Equipment
| Category | Description |
|---|---|
| BODY | Blackwood Pro Rubber Infused Floor |
| BODY | Removable Deck on the Neck- Bolt On (8 W x 6 L) |
| BRAKES | Electric Over Hydraulic Brakes (Drum) |
| CARGO CONTROL | 4" Sliding Winch |
| CARGO CONTROL | 4" Weld-On Winch |
| CARGO CONTROL | 4" x 30 Strap |
| CARGO CONTROL | 5/8" D-Ring |
| CARGO CONTROL | Low Profile Tool Box 15" x 15" x 36" (Side Mount) |
| CARGO CONTROL | Sliding Winch Track (Per 6 Section) |
| JACK | Dual 2-Speed Landing Gear |
| JACKS | Dual Electric Over Hydraulic Jacks by Stillwell |
| RAMPS | (2) 5 MEGA Ramps |
| RAMPS | 8 Rear Slide-In Ramps (Straight Deck Only) |
| RAMPS | No Dovetail Option (Deletes Dovetail and Ramps) |
| TIRE/WHEEL | Tire and Spare Upgrade (ST235/85 R-16 LR-G) |
